汎用レジスタの作成
「ペリフェラル領域に記憶域が欲しい」という要望を受けました。 レジスタが自由に使えるコンポーネントは無いかと探しましたが、面倒なので作ってしまいました。
シンボル

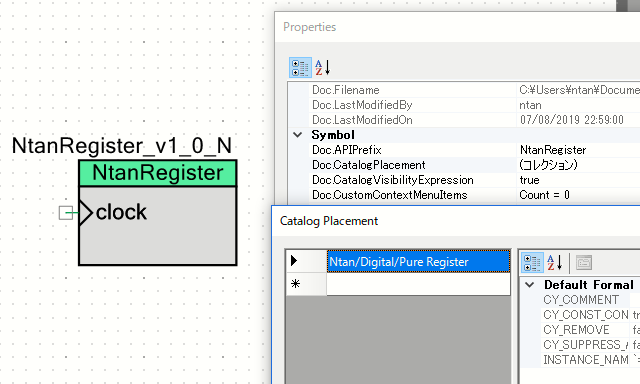

まずは、シンボルから。 シンボルには、クロック入力 clock だけを付けました。 データパスを使うときには、クロックは必須なんだそうです。
その他には、 Property の中で APIPrefix と CatalogPlacement を設定しました。 APIPrefix は、 API を作るときには有ったほうが良いよね。
Verilogファイル
シンボルから "Generate Verilog" で Verilog ファイルを作ります。 Datapath Config Tool を使って、 8-bit データパスを配置し、 clock だけ設定したら終了です。 データパスを配置したけれど、単なるレジスタファイルとして使うので、何も動かす必要はありません。
//`#start header` -- edit after this line, do not edit this line
// ========================================
//
// Copyright YOUR COMPANY, THE YEAR
// All Rights Reserved
// UNPUBLISHED, LICENSED SOFTWARE.
//
// CONFIDENTIAL AND PROPRIETARY INFORMATION
// WHICH IS THE PROPERTY OF your company.
//
// ========================================
`include "cypress.v"
//`#end` -- edit above this line, do not edit this line
// Generated on 07/08/2019 at 22:59
// Component: NtanRegister_v1_0
module NtanRegister_v1_0 (
input clock
);
//`#start body` -- edit after this line, do not edit this line
// Your code goes here
cy_psoc3_dp #(.cy_dpconfig(
{
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM0: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM1: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM2: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM3: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM4: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM5: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM6: */
`CS_ALU_OP_PASS, `CS_SRCA_A0, `CS_SRCB_D0,
`CS_SHFT_OP_PASS, `CS_A0_SRC_NONE, `CS_A1_SRC_NONE,
`CS_FEEDBACK_DSBL, `CS_CI_SEL_CFGA, `CS_SI_SEL_CFGA,
`CS_CMP_SEL_CFGA, /*CFGRAM7: */
8'hFF, 8'h00, /*CFG9: */
8'hFF, 8'hFF, /*CFG11-10: */
`SC_CMPB_A1_D1, `SC_CMPA_A1_D1, `SC_CI_B_ARITH,
`SC_CI_A_ARITH, `SC_C1_MASK_DSBL, `SC_C0_MASK_DSBL,
`SC_A_MASK_DSBL, `SC_DEF_SI_0, `SC_SI_B_DEFSI,
`SC_SI_A_DEFSI, /*CFG13-12: */
`SC_A0_SRC_ACC, `SC_SHIFT_SL, 1'h0,
1'h0, `SC_FIFO1_BUS, `SC_FIFO0_BUS,
`SC_MSB_DSBL, `SC_MSB_BIT0, `SC_MSB_NOCHN,
`SC_FB_NOCHN, `SC_CMP1_NOCHN,
`SC_CMP0_NOCHN, /*CFG15-14: */
10'h00, `SC_FIFO_CLK__DP,`SC_FIFO_CAP_AX,
`SC_FIFO_LEVEL,`SC_FIFO__SYNC,`SC_EXTCRC_DSBL,
`SC_WRK16CAT_DSBL /*CFG17-16: */
}
)) dp(
/* input */ .reset(1'b0),
/* input */ .clk(clock),
/* input [02:00] */ .cs_addr(3'b0),
/* input */ .route_si(1'b0),
/* input */ .route_ci(1'b0),
/* input */ .f0_load(1'b0),
/* input */ .f1_load(1'b0),
/* input */ .d0_load(1'b0),
/* input */ .d1_load(1'b0),
/* output */ .ce0(),
/* output */ .cl0(),
/* output */ .z0(),
/* output */ .ff0(),
/* output */ .ce1(),
/* output */ .cl1(),
/* output */ .z1(),
/* output */ .ff1(),
/* output */ .ov_msb(),
/* output */ .co_msb(),
/* output */ .cmsb(),
/* output */ .so(),
/* output */ .f0_bus_stat(),
/* output */ .f0_blk_stat(),
/* output */ .f1_bus_stat(),
/* output */ .f1_blk_stat(),
/* input */ .ci(1'b0), // Carry in from previous stage
/* output */ .co(), // Carry out to next stage
/* input */ .sir(1'b0), // Shift in from right side
/* output */ .sor(), // Shift out to right side
/* input */ .sil(1'b0), // Shift in from left side
/* output */ .sol(), // Shift out to left side
/* input */ .msbi(1'b0), // MSB chain in
/* output */ .msbo(), // MSB chain out
/* input [01:00] */ .cei(2'b0), // Compare equal in from prev stage
/* output [01:00] */ .ceo(), // Compare equal out to next stage
/* input [01:00] */ .cli(2'b0), // Compare less than in from prv stage
/* output [01:00] */ .clo(), // Compare less than out to next stage
/* input [01:00] */ .zi(2'b0), // Zero detect in from previous stage
/* output [01:00] */ .zo(), // Zero detect out to next stage
/* input [01:00] */ .fi(2'b0), // 0xFF detect in from previous stage
/* output [01:00] */ .fo(), // 0xFF detect out to next stage
/* input [01:00] */ .capi(2'b0), // Software capture from previous stage
/* output [01:00] */ .capo(), // Software capture to next stage
/* input */ .cfbi(1'b0), // CRC Feedback in from previous stage
/* output */ .cfbo(), // CRC Feedback out to next stage
/* input [07:00] */ .pi(8'b0), // Parallel data port
/* output [07:00] */ .po() // Parallel data port
);
//`#end` -- edit above this line, do not edit this line
endmodule
//`#start footer` -- edit after this line, do not edit this line
//`#end` -- edit above this line, do not edit this line
コメントも何も書いてない。
APIヘッダ
ヘッダファイルには、レジスタアドレスの読み替えマクロと、関数宣言が入っています。 ここでは、 A0 と A1 の二つのレジスタしか定義していないので、 D0 と D1 が欲しい方は追加してください。
/* ========================================
*
* Copyright YOUR COMPANY, THE YEAR
* All Rights Reserved
* UNPUBLISHED, LICENSED SOFTWARE.
*
* CONFIDENTIAL AND PROPRIETARY INFORMATION
* WHICH IS THE PROPERTY OF your company.
*
* ========================================
*/
#if !defined(`$INSTANCE_NAME`_H)
#define `$INSTANCE_NAME`_H
#include <cytypes.h>
#define `$INSTANCE_NAME`_A0_PTR ((reg8 *)`$INSTANCE_NAME`_dp__A0_REG)
#define `$INSTANCE_NAME`_A1_PTR ((reg8 *)`$INSTANCE_NAME`_dp__A1_REG)
extern uint8 `$INSTANCE_NAME`_ReadA0(void);
extern void `$INSTANCE_NAME`_WriteA0(uint8 value);
extern uint8 `$INSTANCE_NAME`_ReadA1(void);
extern void `$INSTANCE_NAME`_WriteA1(uint8 value);
#endif // `$INSTANCE_NAME`_H
/* [] END OF FILE */
API本体
API の本体は、関数定義を書いておしまいです。 何のことはない、 8-bit の値をデータパスのレジスタと読み書きするだけです。
/* ========================================
*
* Copyright YOUR COMPANY, THE YEAR
* All Rights Reserved
* UNPUBLISHED, LICENSED SOFTWARE.
*
* CONFIDENTIAL AND PROPRIETARY INFORMATION
* WHICH IS THE PROPERTY OF your company.
*
* ========================================
*/
#include "`$INSTANCE_NAME`.h"
uint8 `$INSTANCE_NAME`_ReadA0(void) {
return CY_GET_REG8(`$INSTANCE_NAME`_A0_PTR);
}
void `$INSTANCE_NAME`_WriteA0(uint8 value) {
CY_SET_REG8(`$INSTANCE_NAME`_A0_PTR, value);
}
uint8 `$INSTANCE_NAME`_ReadA1(void) {
return CY_GET_REG8(`$INSTANCE_NAME`_A1_PTR);
}
void `$INSTANCE_NAME`_WriteA1(uint8 value) {
CY_SET_REG8(`$INSTANCE_NAME`_A1_PTR, value);
}
/* [] END OF FILE */
DMA Capabilityファイル
このファイルは、 DMA Wizard から参照してもらい、 DMA 制御プログラムの断片を作ります。 作りはしたけど、まだ使ってないから、誰か試してくださいな。
<?xml version="1.0" encoding="us-ascii"?>
<!--
DMACapability needs to contain 1 or more Category tags. Category needs to contain 1 or more Location tags.
Category Attributes
===================
name: The name of the cataegory to display to the user in the DMA Wizard. (If only one category is entered
it will not be displayed as a sub-category in the wizard. Instead it will just be used when the
user selects its associated instance.)
enabled: [OPTIONAL] "true" or "false". If not provided it defaults to true. If false,
this category and its locations are not included in the DMA Wizard. Note: this value can be set
to an expression referencing parameters by using `=` (e.g. `="Your Expression here"`).
bytes_in_burst: Integer between 1 and 127. The number of bytes that can be sent/recieved in a single burst.
bytes_in_burst_is_strict: "true" or "false". Determines whether the bytes_in_burst is a maximum value (false)
or a specific value that must be used (true).
spoke_width: Integer between 1 and 4. The spoke width in bytes.
inc_addr: "true" or "false". Specifies whether or not the address is typically incremented.
each_busrt_req_request: "true" or "false". Specifies whether or not a request is required for each burst.
Location Attributes
===================
name: The name of the location to display to the user in the DMA Wizard.
enabled: [OPTIONAL] "true" or "false". If not provided it defaults to true. If false, this
location is not included in the DMA Wizard. Note: this value can be set to an expression
referencing parameters by using `=Your Expression here`.
direction: "source", "destination", or "both".
-->
<DMACapability>
<Category name=""
enabled="true"
bytes_in_burst="1"
bytes_in_burst_is_strict="true"
spoke_width="2"
inc_addr="false"
each_burst_req_request="true">
<Location name="`$INSTANCE_NAME`_A0_PTR" enabled="true" direction="both"/>
<Location name="`$INSTANCE_NAME`_A1_PTR" enabled="true" direction="both"/>
</Category>
</DMACapability>
使い方

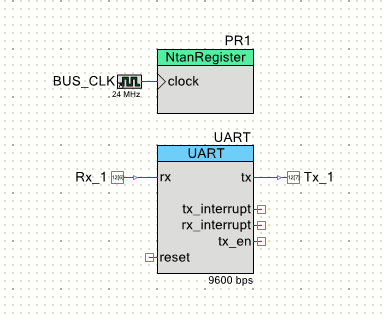

使い方は、簡単。 コンポーネントを回路図の上に置いて、クロックをつないだら、何も設定せずにすぐ使えます。
/* ========================================
*
* Copyright YOUR COMPANY, THE YEAR
* All Rights Reserved
* UNPUBLISHED, LICENSED SOFTWARE.
*
* CONFIDENTIAL AND PROPRIETARY INFORMATION
* WHICH IS THE PROPERTY OF your company.
*
* ========================================
*/
#include "project.h"
#include <stdio.h>
int main(void)
{
uint8 i;
char sbuf[128];
CyGlobalIntEnable; /* Enable global interrupts. */
/* Place your initialization/startup code here (e.g. MyInst_Start()) */
UART_Start();
UART_PutString("\r\nHELLO WORLD\r\n");
sprintf(sbuf, "INIT A0=%d, A1=%d\r\n", PR1_ReadA0(), PR1_ReadA1());
UART_PutString(sbuf);
for (i = 0; i < 10; i++) {
sprintf(sbuf, "WRITE A0=%d, A1=%d\r\n", i, 9-i);
UART_PutString(sbuf);
PR1_WriteA0(i);
PR1_WriteA1(9-i);
sprintf(sbuf, "READ A0=%d, A1=%d\r\n", PR1_ReadA0(), PR1_ReadA1());
UART_PutString(sbuf);
}
for(;;)
{
/* Place your application code here. */
}
}
/* [] END OF FILE */
API 関数を使って、レジスタの読み書きができます。 DMA とも連携するはずです。
コンポーネント
ここで作ったコンポーネントは、このリンクからダウンロードしたファイルの拡張子を cycomp に変えると Import できるようになります。
